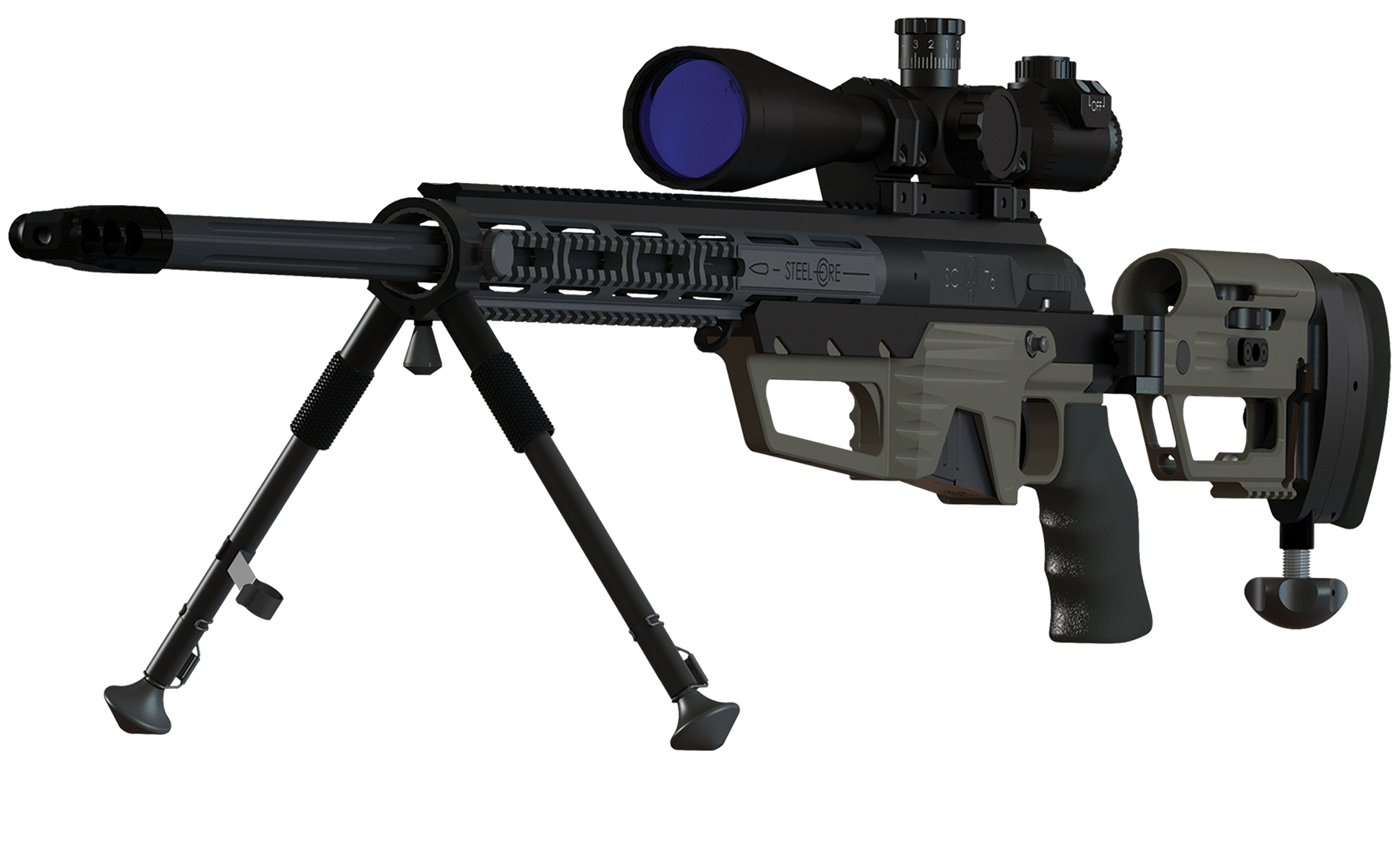

CYCLONE LSR

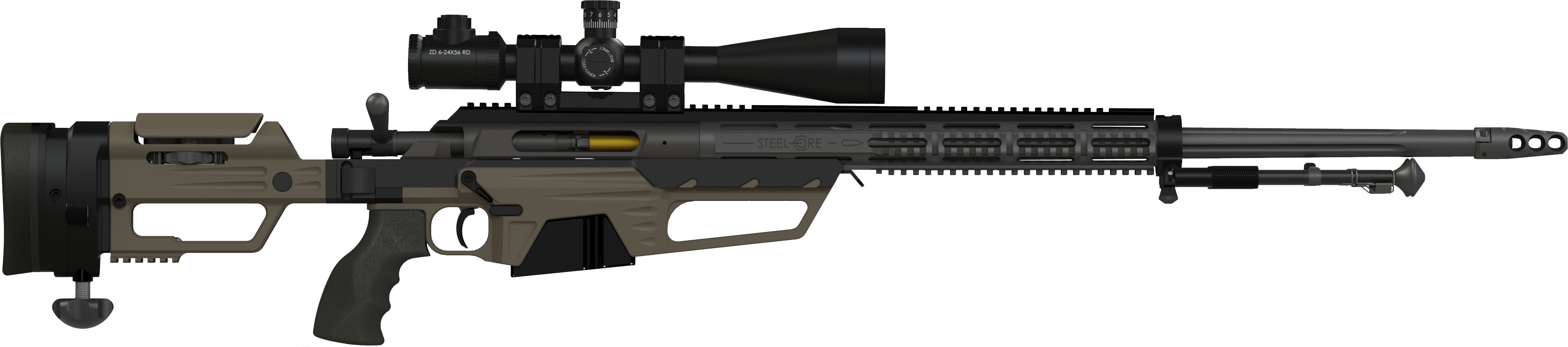

CYCLONE MSR
OVERVIEW
The CYCLONE rifle offers uncompromising performance and accuracy. It is both ergonomically pleasing with the unparalleled build quality our customers have come to expect. Ideal for Law Enforcement, Military and Government Agency application. It will not disappoint the most discerning of civilian target shooters either.
ADJUSTABLE BUTT PLATE
The CYCLONE stock features a folding butt as standard for easy bore sighting, cleaning, maintenance and transit. The butt incorporates an adjustable cheek rest, length adjustment, butt pad height adjustment and a quick deployment mono pod with thumbwheel fine adjustment.
Full length picatinny rail
The Picatinny scope rail is available with a parallel or angled option to suit the weapon and/or customer requirements. All CYCLONE rifles are equipped with a 600 mm long Picatinny top rail to accommodate additional thermal and night vision equipment. The forend tube comes equipped with both side and lower Picatinny rails as standard for additional accessory attachment.
match grade barrel
SCD barrels are produced to a very
muzzle brake as standard
Our highly efficient muzzle brake is
FULLY ADJUSTABLE BI-POD AS STANDARD
The SCD bipod is fully height adjustable and fits directly to the forend. The bipod features a swivel action which rotates around the centreline of the bore.
This feature minimises shot deviation due to torque reaction. The bipod features a
corrosion / wear resistant coating
Low friction and
2-point safety
The rifle safety lever is incorporated in the trigger
2-stage trigger drop test compliant
A high-quality trigger is vital to enable
folding stock
QUICK RELEASE ADJUSTABLE MONOPOD
ADJUSTABLE CHEEK
HIGH TENSILE STEEL RECEIVER
Specifications
CYCLONE LSR |
CYCLONE MSR |
|
7.62 x 51 NATO |
CALIBRE |
8.6 x 70 (0.338 Lapua Magnum NATO) |
Dependant upon ammunition, shooter skills and visibilty. Short Barrel > 600 m |
ENGAGEMENT RANGE |
Dependant upon ammunition, shooter skills and visibilty. Short Barrel > 1,250 m |
Using match grade ammunition, group size as defined by SCD is measured from shot centre with a four shot group at 100 metres. <1/2 MOA (<0.15 Mil) |
ACCURACY |
Using match grade ammunition, group size as defined by SCD is measured from shot centre with a four shot group at 100 metres. <1/2 MOA (<0.15 Mil) |
10 Rounds |
MAGAZINE |
10 Rounds |
Short Barrel – 20″ (51 cm) Long Barrel – 26″ (66 cm) |
BARREL LENGTH |
Short Barrel – 20″ (51 cm) Long Barrel – 27″ (69 cm) |
1:11 (1:27.9 cm) |
BARREL TWIST |
1:10 (1:24.5 cm) |
Short Barrel – 41″ (104 cm) Long Barrel – 47″ (119 cm) |
OVERALL LENGTH |
Short Barrel – 43″ (109 cm) Long Barrel – 50″ (127 cm) |
Short Barrel – 32″ (81 cm) Long Barrel – 38″ (96 cm) |
FOLDED LENGTH |
Short Barrel – 33″ (84 cm) Long Barrel – 40″ (102 cm) |
Weight will vary according to accessories and specification. 15.2 lb (6.85 kg) |
OPERATIONAL WEIGHT |
Weight will vary according to accessories and specification. 15.9 lb (7.21 kg) |
Black and Dark Earth |
STOCK COLOURS |
Black and Dark Earth |
Standard (add .46 lb (.21 kg)) |
MUZZLE BRAKE |
Standard (add 0.46 lb (0.21 kg)) |
Standard (add 1 lb (.45 kg)) |
BIPOD |
Standard (add 1 lb (0.45 kg)) |
Standard |
FIELD TOOL KIT |
Standard |
Standard |
FIELD CLEANING KIT |
Standard |
OPTIONS
Tactical Day Scope and Rings
Night Vision and LADS
Infra-Red and TI Sights
Waterproof Case
Drag Bag
Sound Suppressor
Sling
Training
